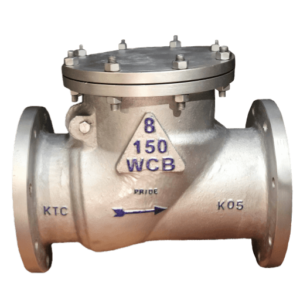

Swing Check Valve

PRODUCT DESCRIPTION
BODY & COVER	CAST IRON \| CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \| WC9 \| DUPLEX
TRIMS	13 CR \| 18 CR 8 NI
MFG STD	BS 1868
TEST STD	BS 6755
END CONNECTION	FLANGED END / BUTT WELD END
HYD TEST PRESSURE	BODY: 425 PSIG (32 KG/CM2) 150# SEAT: 300 PSIG (22 KG/CM2) 150#
SIZE RANGE	25MM TO 1000 MM
TYPE	“SWING” TYPE
CLASS	150# / 300# / 600# / 900# / 1500# / 2500# / PN 10 / PN 16 / ND 40

MATERIAL DETAIL
PART NO.	PART NAME	CAST IRON	WCB	DUCTILE IRON		CF8	CF8M
01	BODY	IS 210 GR FG 200	A 216 GR WCB	GGG 40		A 351 CF8	A 351 CF8M
02	COVER	IS 210 GR FG 200	A 216 GR WCB	GGG 40		A 351 CF8	A 351 CF8M
03	DISC	ASTM A 216 Gr. WCB + 13% Cr. Facing
04	SEAT RING	ASTM A 217 GR CA 15	ASTM A 217 GR CA 15	ASTM A 217 GR CA 15	ASTM A 351 GR CF8		ASTM A 351 GR CF8M
05	HINGE PIN	AISI 410(13% Cr.) / S.S. 304 / S.S. 316
06	DISC HINGE	ASTM A 216 Gr. WCB			ASTM A 351 Gr. CF8 / CF8M
07	COVER GASKET	S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAPHOIL FILLER			PTFE
08	COVER STUD & NUTS	ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H			A 193 B16,A194 Gr.4/7
