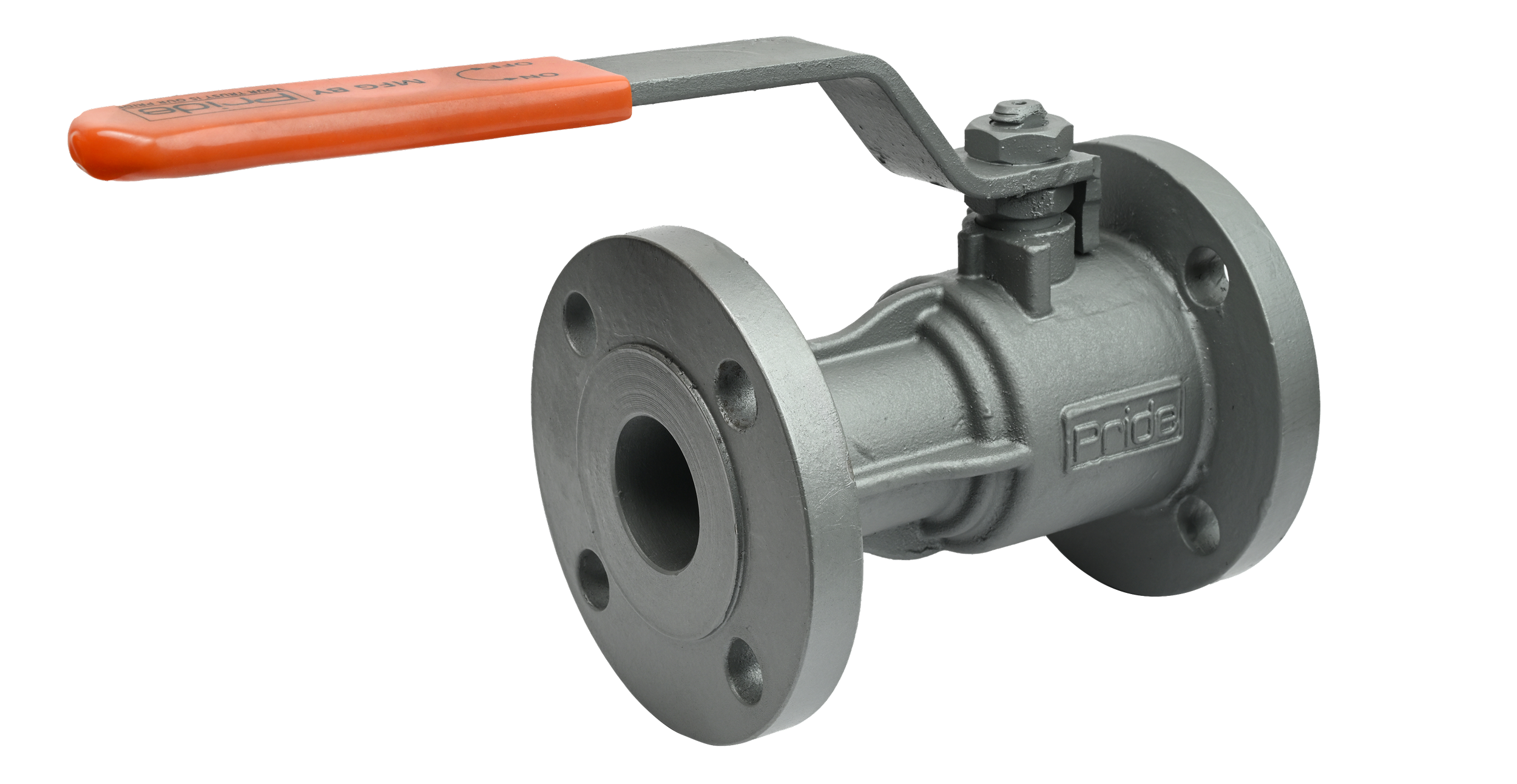

A single-piece flanged ball valve is a compact and efficient solution for controlling flow in pipelines. Its one-piece construction eliminates potential leak points, enhancing reliability and durability. The flanged connection allows for easy installation and maintenance, ensuring quick and secure integration into existing systems. With a simple quarter-turn operation, it provides precise flow control, making it ideal for a wide range of applications across industries where reliability and efficiency are paramount.
| Valve Design | Single Piece Construction |
| Size | 15mm to 100mm (1/2″ TO 4″) |
| End Connection | Flanged End (ASME B16.5) |
| Pressure Class | 150# / 300# |
| Operation | Manual |
| Design & manufacturing Standard | BS 5351 / ISO 17292 |
| Testing & Inspection | API 598 |
| Valve Bore | Full Bore |
| Face to Face | Manufacturing Standard. |
| Temp. Range | -20 TO 180°C |
| Name | Details |
|---|---|
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Insert | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT |
| Body Seal | PTFE/GFT/CFT/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L |
| Lock Nut | SS202/SS304/SS316 |
| Stem | SS304/SS316/SS304L/SS316L |
| Handle | SS202/SS304/SS316 |
| Sleeve | PVC |
| Test Type | 150# Unit-Kg / Cm | 300# Unit-PSIG |
|---|---|---|
| Hydro. Body | 32 | 79 |
| Hydro Seat | 22 | 57 |
| Air/Pneumatic | 7 | 7 |
