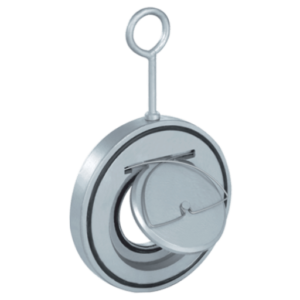

PRODUCT DESCRIPTION | |
| BODY | CAST IRON | CAST STEEL | MS | SS 304 | SS 316 | SS 304L | SS 316L | DUPLEX |
| DISC | CI | MS | CS | SS 304 | SS 316 | SS 304L | SS 316L | DUPLEX |
| “O” RING | NITRILE | PTFE | VITON | EPDM | SILICON |
| HING PIN | AISI 410 | AISI 304 | AISI 316 |
| MFG STD | API 6D |
| TEST STD | API 6D |
| HYD TEST PRESSURE | BODY: 225 PSIG (15 KG/CM2) SEAT: 150 PSIG (10 KG/CM2) |
| SIZE RANGE | 25 MM TO 1000 MM |
| TYPE | WAFER TYPE |
| CLASS | PN 10 / PN 16 / 150# / 300# |
MATERIAL DETAIL | ||
| PART NO. | PART NAME | MATERIAL |
| 01 | BODY | MILED STEEL / CAST IRON / CAST STEEL (ASTM A 216 GR. WCB), S.S. ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M |
| 02 | DISC | CAST IRON / CAST STEEL (ASTM A 216 GR. WCB), S.S. ASTM A 351 GR. CF8 / CF8M / CF3 / CF3M |
| 03 | ‘O’RING | NITRILE/ EPDM/ VITON/ SILICON/ PTFE |
| 04 | HINGEPIN | AISI 304 / AISI 316 |
PRIMARY SERVICE RATING & TEST PRESSURE |
|||
| CLASS | WORKING TEMPERATURE | HYD. TEST PRESSURE | |
| BODY | SEAT | ||
| 150 | 20°C to 180°C | 225 PSIG | 150 PSIG |
